Product Information

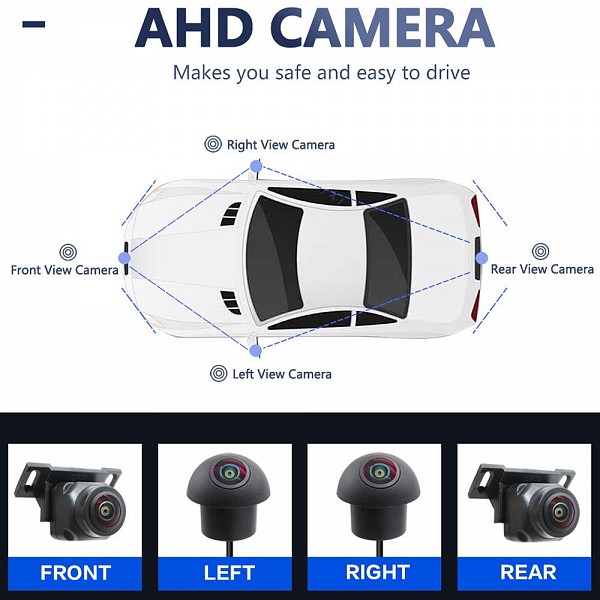

The 3D 360-Degree Panoramic Visual Parking Auxiliary System collects the images around the vehicle simultaneously through four ultra-wide field cameras installed in the front and back left and right sides of the vehicle body. After correction and stitching by the image processing unit, a 360-degree 3D panorama around the vehicle is formed and transmitted to the display equipment of the central console in real time. Through the 360-degree panoramic visual system, the driver can visually view the location of the vehicle and the obstacles around the vehicle from in the vehicle, control the parking entrance of the vehicle from time to time, pass through the complex pavement, and effectively reduce the occurrence of accidents such as scratching, collision, and subsidence.

Features

• Various video output modes: CVBS, VGA, AHDTVI and HDMI.
• Multiple view angles: including more than a dozen view angles, covering all use scenarios of customers.

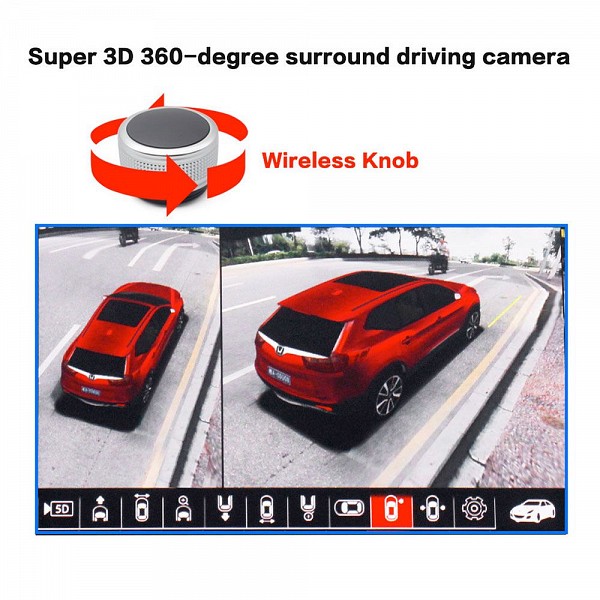

• Rotary knob control: one-press ON/OFF. 360 degree, and various view angles are switched in one button-spin.
• Real 3D: the 3D viewing angle can be arbitrarily switched in all directions.
• Various dynamic effects: door switch. wheel speed/direction. forward/backward, 3D stereoscopic radar real-time display.
• Built-in dozens of 3D molds: built-in dozens of 3D molds for popular models. while are in developing and increasing of models.
• Customized license plate number, arbitrary input. Arbitrarily switching of 7 colors of each model are available.
• Double CAN plate, insert double CAN plate to transform it as double CAN 3D all-in-one machine.
• Available varied trajectory line styles, trajectory changes with radar.
• Parking monitoring, one beat per second, with a maximum of 24 hours of parking monitoring.
• It is compatible with Hisilicon calibration cloth, two manual large cloth, two manual small cloth, and two automatic small cloth.
• 3D viewing angle size, viewing angle height, 3D facade, 3D mold length adjustable, 3D top shadow-free available, display in any screen available, normal 3D mold ratio. not stretched.

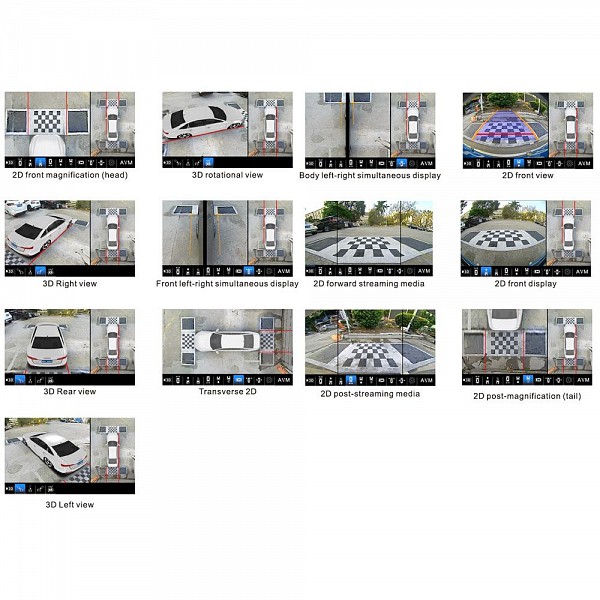

Display Modes

2D display, 3D display, narrow-channel wide-limit mode front-rear wide-field view, head and tail view amplification and so on.
