Operation class Class D
Number of Channels 01
Maximum power @ 12,6 VDC - 1 OHM: 1800W RMS
@ 12,6 VDC - 2 OHMS: 1410W RMS
Input Sensitivity 220 mV
Signal to Noise Ratio >88dB
Frequency response 10Hz ~ 20KHz (-3dB)
Crossover high pass (HPF) 10Hz ~ 80Hz (-12dB/8ª) Variable
Crossover low pass (LPF) 80Hz ~Full (-12dB/8ª) Variable
Bass Boost 0 ~ 10.5dB (50Hz)

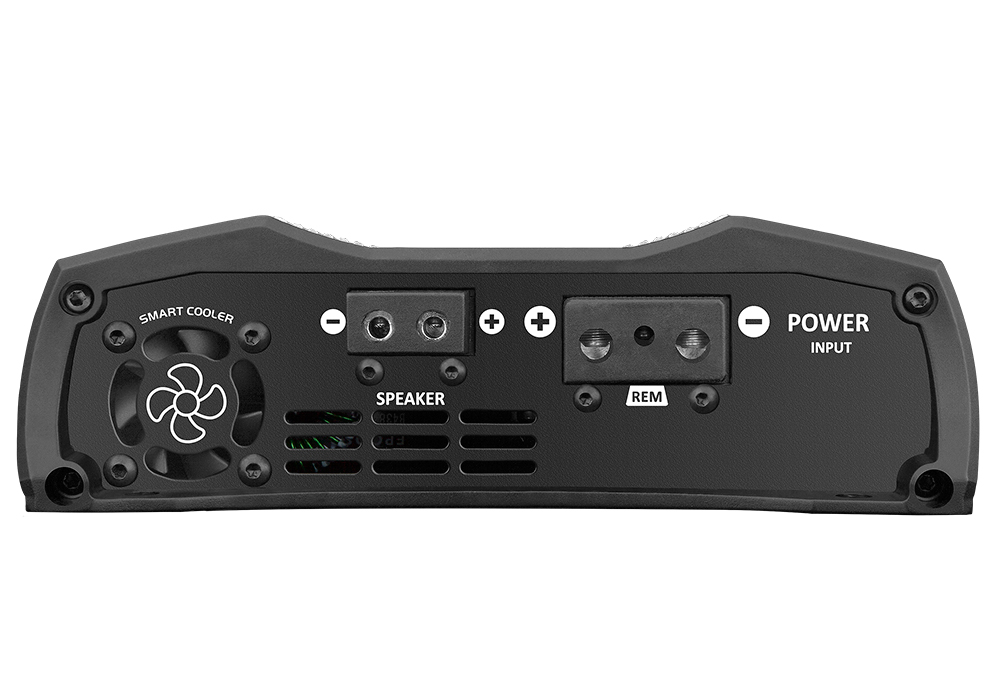

Thermal Management Smart Cooler (fan controlled by temperature or audio, with 3 speeds)
Efficiency 78%
Input Impedance 10k OHMS
Output Impedance 1 OHM
Protection system Output Short / High/Low Supply Voltage / Thermal Protection
Min. Supply Voltage 9VDC
Maximum Power Supply Voltage 16VDC
Consumption at rest 1.7 A
Maximum music consumption 91 A
Maximum consumption in sinusoidal signal 182 A
Dimensions (H x W x D) mm 228 x 70 x 188mm
Weight 2.18Kg
